Re: ss1 steering rack

Post by reliant-reviver » Wed Jun 04, 2014 8:48 am

Couple of pics here of the "lug" present on the GM uprights, that ain't there on the SS1. These ones have been modified to reduce lock due to brake upgrade hitting the wishbones.
http://chevetteownersgroup.co.uk/index. ... l#msg63114


Philip Andrew.
'74 Robin Super Saloon, '84 SS1 1300, '86 SS1 1800ti, '87 SS1 1300
Previous: I lost count around fifty.

User avatar
Roger Pennington
RSSOC Member
Posts: 19833
Joined: Tue Aug 29, 2006 9:43 pm
Has thanked: 136 times
Been thanked: 502 times

Re: ss1 steering rack

Post by Roger Pennington » Wed Jun 04, 2014 10:03 am

If there was a variety of Chevette ("poverty spec" or whatever) that had a higher-ratio, SS1-type rack, then it seems logical that this would be well-known in the world of Chevette tuning, and that we wouldn't be getting people from there, looking at SS1s as a possible "alterpart"?
philhoward wrote: As for the racks - it's highly feasible that GM had two suppliers (Burman rings a bell for one; possibly Cam Gears the other) so again likely Reliant went to them to make a rack to their specification based on the racks they were making for GM, hence similarities.
That strikes me as a plausible scenario, and is reflected in Keith's note -
myredscimitar wrote:I don't know about the SS1 rack ( never had to look at either of mine closely.... touch wood ), but when I had the 6b I had the rack in and out a few times.

From what I saw it looked like a " modular " design, so I guess made up from a set of standard parts ( pinion housing, rack bar, tube, rods, seals, end cap things etc etc) but with lengths varied to suit the specific car. I can't imagine all those different car models having bespoke rack designs, far too complex and expensive.
Keith
The Se6-on power rack is in many respects a Rover SD1 rack, but with a number of mods made to the design to adapt it to the Scimitar installation, which effectively make them non-interchangeable without quite a lot of work.
So maybe not "bespoke" in the sense of "designed from a blank sheet of paper" but sufficiently different to be not exactly like anything else.


....Roger

RSSOC member (since 1982)
- - - - - - - - - - - - - - - - -

"Condition can be bought at any time; Originality, once lost, is gone forever" - Doug Nye

User avatar
reliant-reviver
RSSOC Member
Posts: 4834
Joined: Thu Jun 14, 2007 8:05 pm
Location: Beighton, Sheffield
Has thanked: 84 times
Been thanked: 131 times

Re: ss1 steering rack

Post by reliant-reviver » Wed Jun 04, 2014 10:56 am

In terms of internals it shares more in common with the TVR S series rack.
The TVR rack appears to use the chevette style outer (steel tube / NS housing) with nylon NS rack bush. My reading up suggests it uses Cortina track rods which are slightly longer than the SS1's
Also of note are the lock collars / rack stops are longer on the TVR thus reducing the lock.

http://www.pistonheads.com/gassing/topic.asp?t=924718


Remember the nylon cups that wear out, think I have found the answer http://www.seriouslylotus.com/suspensio ... ronze-cups


Philip Andrew.
'74 Robin Super Saloon, '84 SS1 1300, '86 SS1 1800ti, '87 SS1 1300
Previous: I lost count around fifty.

pauluspaolo
RSSOC Member
Posts: 466
Joined: Mon Jul 07, 2008 9:50 am
Location: Leeds, West Yorkshire
Has thanked: 1 time
Been thanked: 1 time

Re: ss1 steering rack

Post by pauluspaolo » Thu Jun 05, 2014 9:39 am

My SS1 passed the mot last Friday (hooray :)) with the advisory that there was excess play in the steering rack (boo :() - hence I am now on the hunt for a steering rack. I've seen RR's for sale post but the one I wanted has gone unfortuntaely :( I'm going to contact him soon about another I'm interested in but does anyone know where I can get a steering rack reconditioned & how much it might cost (which I suppose will depend on what's wrong with it)?

:)



User avatar
philhoward
RSSOC Member
Posts: 24801
Joined: Tue Aug 29, 2006 5:41 pm
Location: Staffs, UK
Has thanked: 49 times
Been thanked: 589 times
Contact:

Re: ss1 steering rack

Post by philhoward » Thu Jun 05, 2014 9:46 am

Not sure if it's his speciality but I think my first port of call would be Mark Wilson (as GTE rack guru)?


Phil Howard
Scimitarweb Forum Admin
SS1 1600 Rooster Turbo; Sabre Mk1.5, Sabre Mk2
Previous: SE5/5a/SS1 No.1/SS1 Rooster/SS1 1800Ti/SE5a 24 Valve
http://www.ss1turbo.com
Never try and argue with an idiot. They drag you down to their level, then beat you based on experience.

User avatar
Corky
RSSOC Member
Posts: 11033
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 184 times
Been thanked: 181 times

Re: ss1 steering rack

Post by Corky » Wed Jun 18, 2014 4:12 pm

reliant-reviver wrote:Richard, thanks for confirming that! I had forgotten about that response, and dug this thread up instead as it's in a bit more of a suitable location.

Made similar discoveries today in my "rack attack" session.....

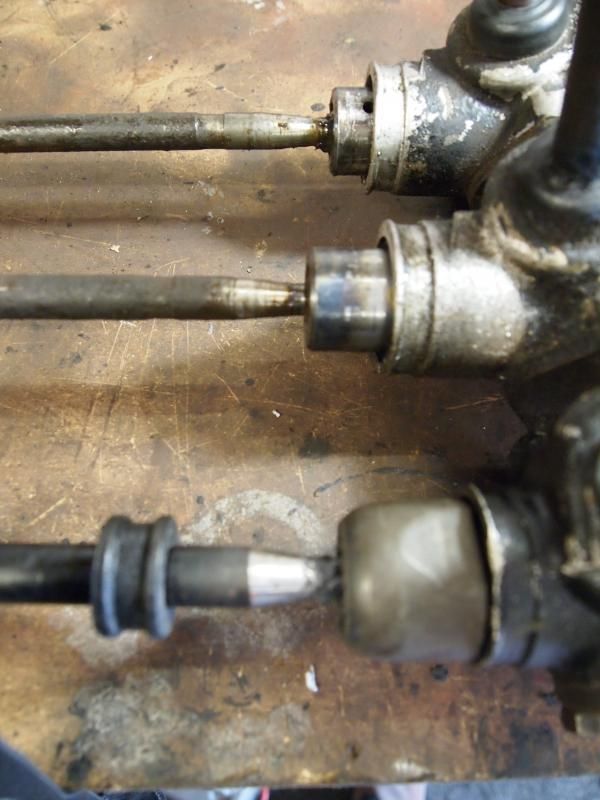

If you look closely you may spot that one of these racks is slightly distorted.


After a bit of straightening of the Chevette rack, I laid it out with an SS1 item for some comparisons.

Chevette rack above in these photos.


Chevette coupling on the right -


SS1 Above, Chevette Below


From top - SS1 Modified for more lock, SS1 stock, Chevette -


Measurements as follows in the comparison of SS1 and Chevette racks

Travel per pinion turn:
SS1 45mm
Chevette 38mm

Travel as assembled:
SS1 130mm
Chevette 157mm

Max number pinon revolutions possible on rack teeth (un-assembled):
SS1 3.6
Chevette 4.8

Number of turns at pinon from lock to lock as assembled:
SS1 Standard - 2.9
SS1 Modified - 3.3
Chevette Standard - 4.2

So what does this all add up to?
The SS1 rack is quicker, with a higher ratio.
The overall travel is greater on the Chevette rack in standard guise.

The Chevette rack will fit an SS1 without altering the steering geometry. However it will require the longer Chevette flexible coupling to prevent the steering wheel fouling the column shroud.

Fitting a Chevette rack to an SS1 will lighten the steering / decrease the effort. But at the cost of the more direct sporting feel that the original rack gives. Though this may be a fair trade off for those who struggle at parking speeds (and I know a few owners who had to give their SS1's up for this reason)

From a Chevette owner's prospective (or I suppose for a drift / auto test SS1), it is possible to modify the SS1 rack by reducing the overall length of the stops / lock collars. Doing so will give a similar total travel as a standard chevette rack, but in approx 1 less pinion turn.
Wannig in France did modify a rack to do away with the Reliant track rod system in place of self contained (Meganne?) track rods. I believe he had trouble with too much lock causing the tyres to rub, which would suggest that there is a bit more lock to be had out of the SS1 rack than the one I have pictured above.

The construction of the racks is quite different, the Reliant uses alloy housings at either end, and if worn, it does require machining for the fitment of brass bushes into these ( An idea pioneered by owners of the TVR S Series I believe?)
The Chevette track rods are a service item and easily replaced. The SS1 items can be adjusted provided the nylon cups are not worn.

I do have a single example of an SS1 rack that appears to be fitted in a Chevette housing. Whether this is an original item from the factory, or a hybrid I am not sure.
Phil, I think I know the answer to this, but maybe you could confirm it.. :wink:

Can a Chevette inner tie rod be used on an SS1 rack ? e.g. http://www.ebay.co.uk/itm/111215983601


Steve
