Re: eBay GTC Restoration (now with added rust)

Post by Corky » Tue Jul 27, 2010 12:42 pm

Kev, did you go for 6's or 7's ?

Cheers

Steve


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

User avatar
MrGoldtop1960
RSSOC Member
Posts: 1281
Joined: Sat May 31, 2008 3:18 pm
Location: Hedge End, Hants
Has thanked: 28 times
Been thanked: 25 times

Re: eBay GTC Restoration (now with added rust)

Post by MrGoldtop1960 » Tue Jul 27, 2010 2:40 pm

Steve,
The wheels were n the car when I bought it 16 years ago! I think they're 14" x 6's as they're shod with 195/70's. They're not "wide" by todays modern standards but the proportions look just right on a Scim IMHO!

Kev


Kev Osborne
Solent Noggin NogSec.
Member No.2104

Owner of SE5a "Colonel Mustard"
Previous - "Sid" the SS1 1800ti

User avatar
Corky
RSSOC Member
Posts: 11234
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 255 times
Been thanked: 215 times

Re: eBay GTC Restoration (now with added paint and rust free)

Post by Corky » Fri Aug 27, 2010 9:54 pm

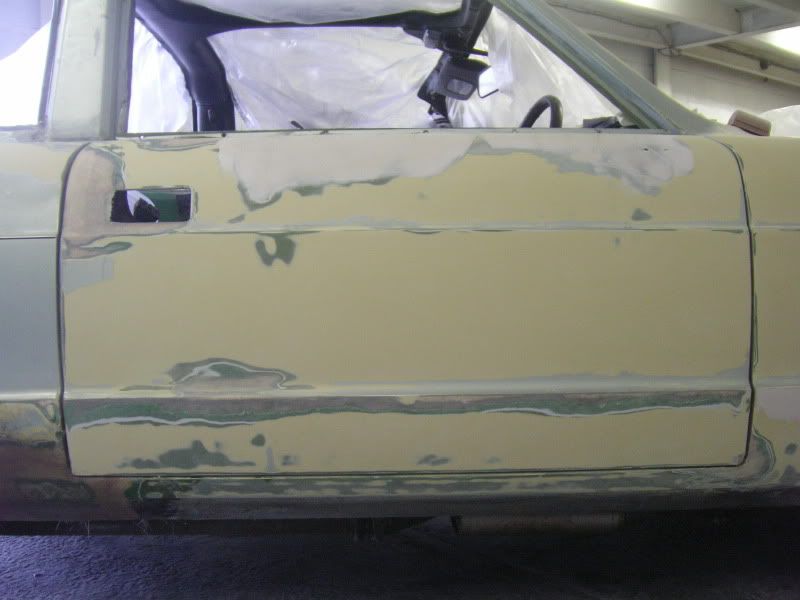

Lots of work has been going on, but I've not reported it !

So here goes, pictures speak louder than words :-

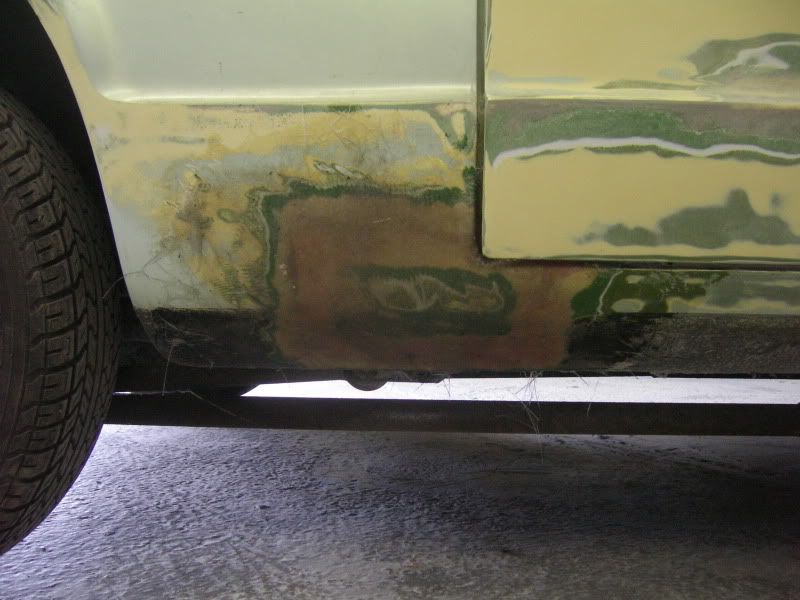

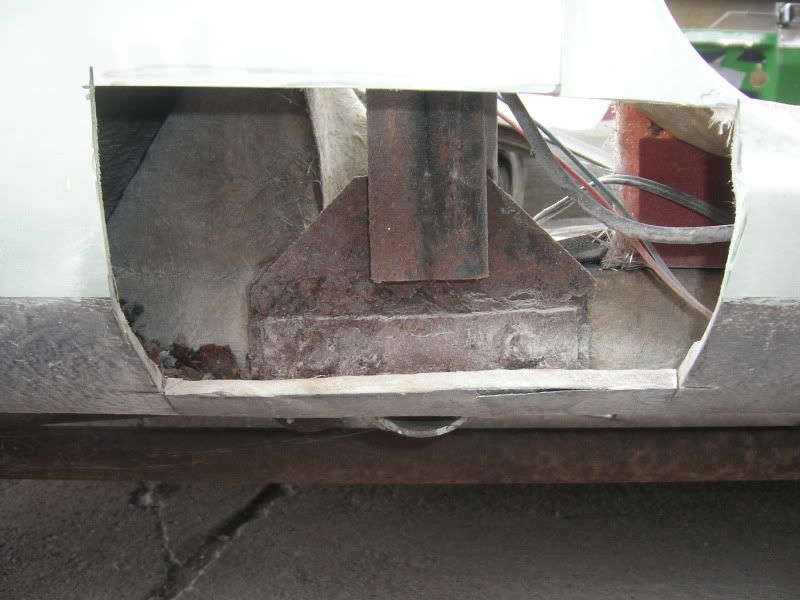

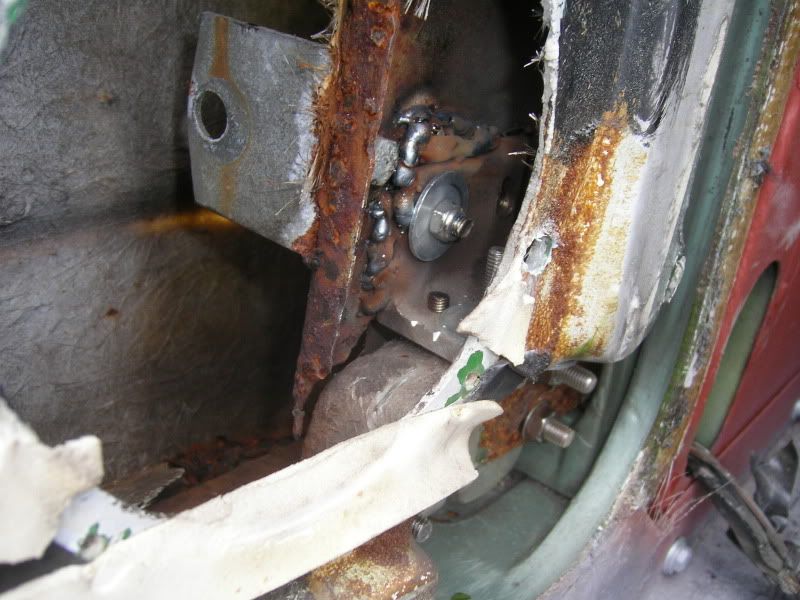

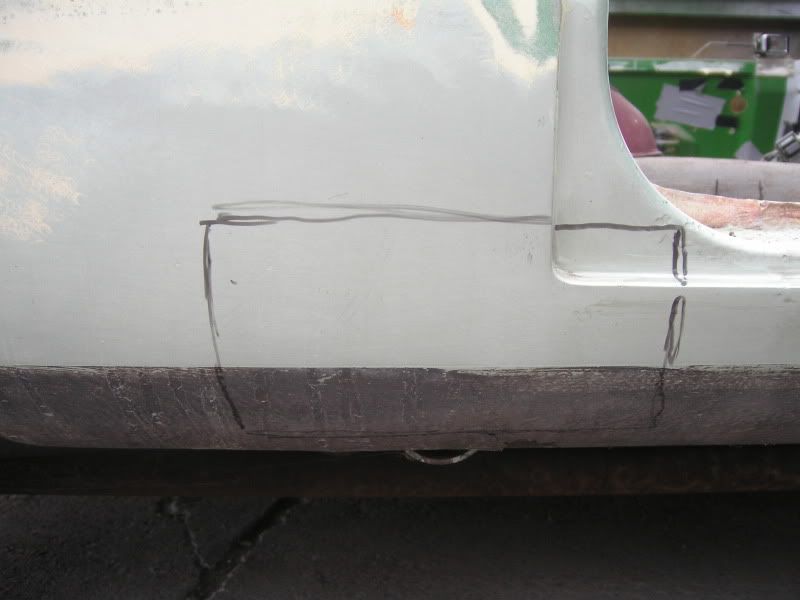

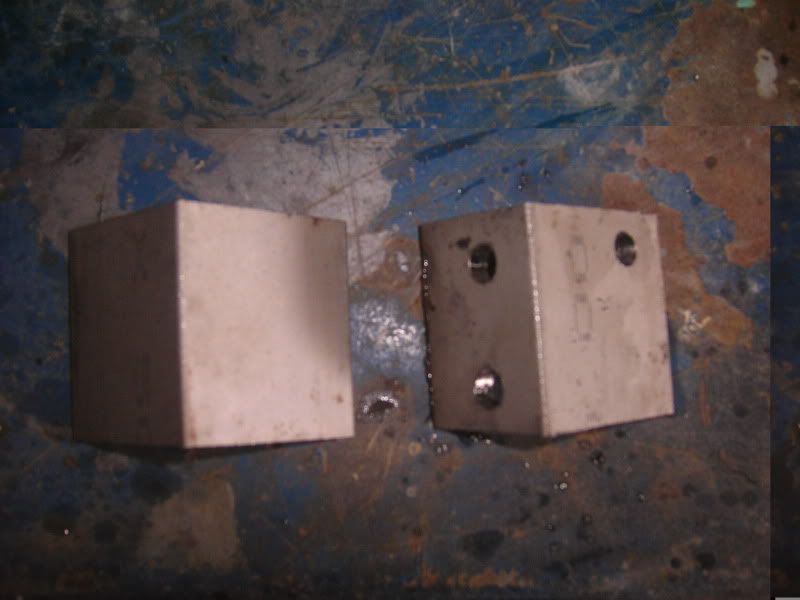

A couple of L shaped rackets made up in stainless to support the door hinges. All the steel work inside the door has since been cleaned up, rust neutralised and coated.ImageImageImageImageImageImageImageImage


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

User avatar
Gelcoat
Posts: 386
Joined: Mon Sep 29, 2008 8:01 pm
Location: OXFORDSHIRE
Has thanked: 2 times
Been thanked: 1 time

Re: eBay GTC Restoration (now with added paint and rust free)

Post by Gelcoat » Thu Sep 02, 2010 2:43 pm

Nice work Steve ,bit of heavy duty repair :D
Tony


1983 6B
"Looks like im walking to Curbs, then the wife said she"d come with me ......ooo the pain....

User avatar
Corky
RSSOC Member
Posts: 11234
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 255 times
Been thanked: 215 times

Re: eBay GTC Restoration (now with added paint and rust free)

Post by Corky » Thu Sep 02, 2010 3:49 pm

Gelcoat wrote:Nice work Steve ,bit of heavy duty repair :D
Tony
Thanks, it turned into a much bigger job than we first thought. I'm currently 6 weeks behind schedule :cry:


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

MikeT
RSSOC Member
Posts: 1236
Joined: Mon Jul 02, 2007 11:35 pm
Location: Dudley, West Mids
Has thanked: 21 times
Been thanked: 23 times

Re: eBay GTC Restoration (now with added paint and rust free)

Post by MikeT » Fri Sep 03, 2010 7:47 am

Looking good Steve - how long now before its in colour?

Mike.


1978 Scimitar SE6a - Project thread


mikerf
Posts: 605
Joined: Sun Aug 23, 2009 4:42 pm
Location: Perth
Been thanked: 7 times

Re: eBay GTC Restoration (now with added paint and rust free)

Post by mikerf » Fri Sep 03, 2010 9:35 am

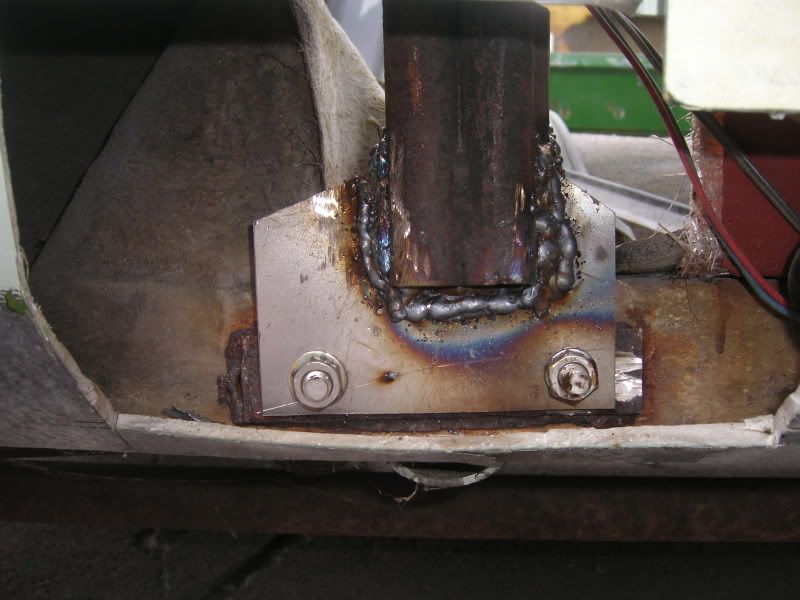

I'm going to risk being shot down in flames here, but I'm not sure I'd be entirely happy with the welding on that roll bar mount. It looks to lack penetration and it's a bit lumpy.

Really sorry if I'm sounding rude here but I'd rather not take chances with something my life might depend on.



User avatar
AJL Electronics
RSSOC Member
Posts: 7845
Joined: Fri Oct 17, 2008 8:49 pm
Location: Gloucester
Has thanked: 46 times
Been thanked: 241 times
Contact:

Re: eBay GTC Restoration (now with added paint and rust free)

Post by AJL Electronics » Fri Sep 03, 2010 10:03 am

mikerf wrote:I'm going to risk being shot down in flames here, but I'm not sure I'd be entirely happy with the welding on that roll bar mount. It looks to lack penetration and it's a bit lumpy.

Really sorry if I'm sounding rude here but I'd rather not take chances with something my life might depend on.
I would have to agree. It seems to lack penetration. I would be inclined to grind it back to clean and reweld, using Argon/Co2. But then of course it is mild to stainless, so there may be a better choice of shielding gas.


Yes, we can mend your Scimitar!
Order your Scimitar parts any hour of the day at http://www.classicmicrocars.com (member's discounts).

Fancy a holiday in Gael, France? http://www.ianrhu.com

There is no point trying to teach a pig to sing. It doesn't work and it annoys the pig.

User avatar
scimjim
RSSOC Member
Posts: 38054
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 140 times
Been thanked: 998 times

Re: eBay GTC Restoration (now with added paint and rust free)

Post by scimjim » Fri Sep 03, 2010 11:47 am

I thought the same initially - but the colour change on the plate indicates that it has penetrated - perhaps the lumpy stuff is a second or third layer on top?


Jim King

SECURE DRY STORAGE FOR YOUR SCIMITAR

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), 1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
Corky
RSSOC Member
Posts: 11234
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 255 times
Been thanked: 215 times

Re: eBay GTC Restoration (now with added paint and rust free)

Post by Corky » Fri Sep 03, 2010 12:29 pm

I knew someone would comment on that. It's just that it's the only photo I have. The weld was ground back, more weld was applied etc etc . After cleaning the whole lot received a coat rust proofing paint (not sure which one). Finally the hole in the body was filled. The same process was applied to the repairs in the doors.

The roll bar mounts are now probably better that they were from the factory, and the door fit most certainly is.


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

User avatar
Corky
RSSOC Member
Posts: 11234
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 255 times
Been thanked: 215 times

Re: eBay GTC Restoration (now with added paint and rust free)

Post by Corky » Fri Sep 03, 2010 12:40 pm

MikeT wrote:Looking good Steve - how long now before its in colour?

Mike.
I'm hoping towards the end of next week. It's a long process getting it right, and guy who's doing it is a real perfectionist.


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

mikerf
Posts: 605
Joined: Sun Aug 23, 2009 4:42 pm
Location: Perth
Been thanked: 7 times

Re: eBay GTC Restoration (now with added paint and rust free)

Post by mikerf » Fri Sep 03, 2010 1:19 pm

scimitarcars.org.uk wrote:I knew someone would comment on that.
Well, trust it to be me :roll:

I didn't mean to cause offence, I guess the pic doesn't do the work involved justice. As long as you're satisfied, that's the main thing.



User avatar
Corky
RSSOC Member
Posts: 11234
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 255 times
Been thanked: 215 times

Re: eBay GTC Restoration (now with added paint and rust free)

Post by Corky » Fri Sep 03, 2010 1:48 pm

mikerf wrote:
scimitarcars.org.uk wrote:I knew someone would comment on that.
Well, trust it to be me :roll:

I didn't mean to cause offence, I guess the pic doesn't do the work involved justice. As long as you're satisfied, that's the main thing.
Absolutely no offence caused whatsoever. This forum is excellent as there are some very knowlegable people on here who sometimes spot something youve missed yourself, or can correct you when you're wrong. I have no problem with that at all. I think on this occaision I asked for it as I didn't explain the photo very well :oops:


Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

User avatar
Corky
RSSOC Member
Posts: 11234
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 255 times
Been thanked: 215 times

Re: eBay GTC Restoration (now with added paint and rust free)

Post by Corky » Fri Sep 10, 2010 12:40 pm

Things are moving on slowly....

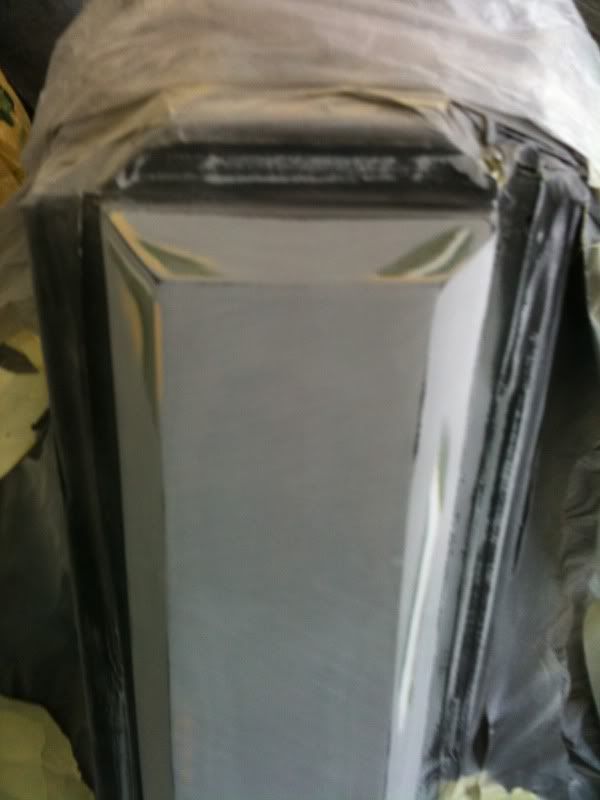

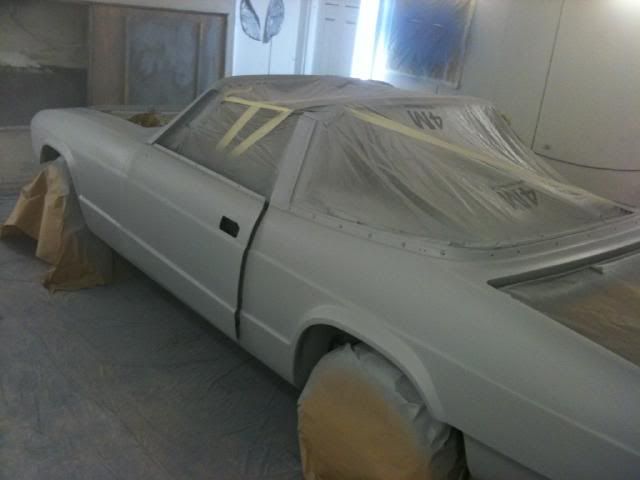

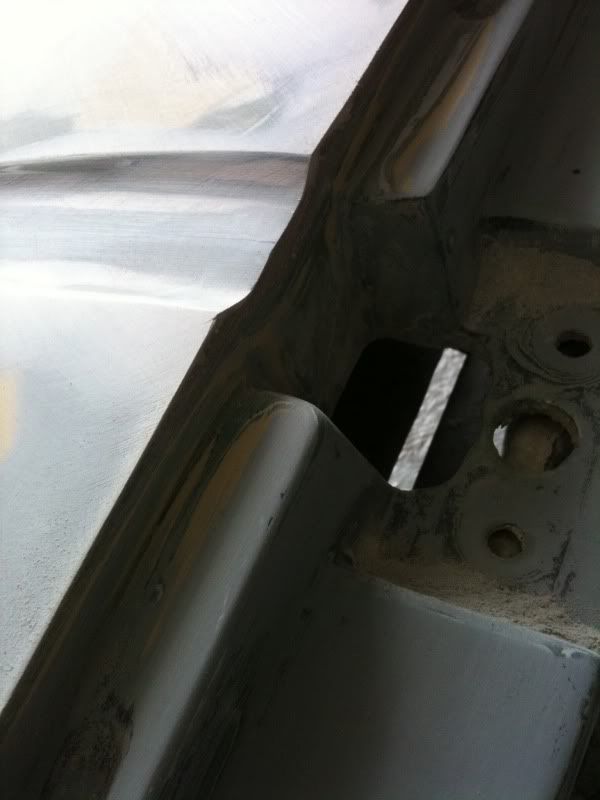

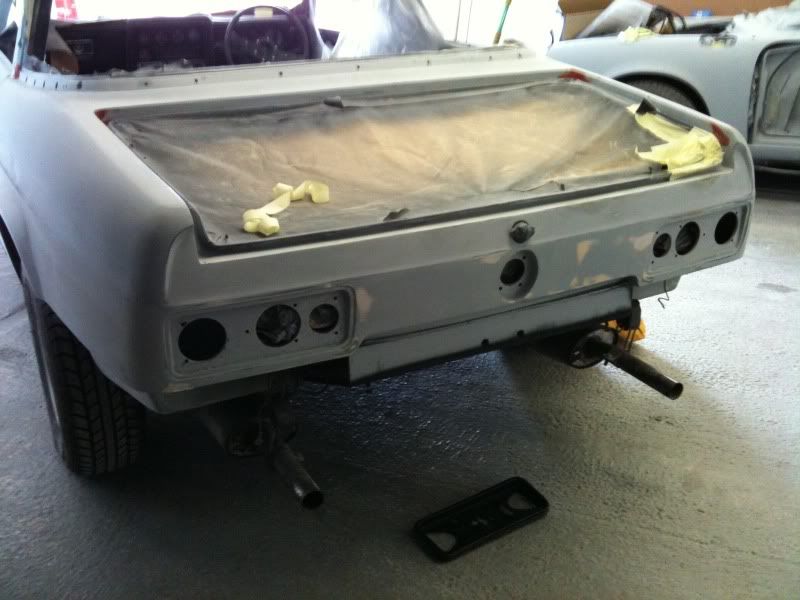

This week the guys have been making sure that none of the car's definition is lost during the rub down. A lot of time has been spent ensuring that the edges and lines of the car are nice and sharp (probably better than when it left the factory).

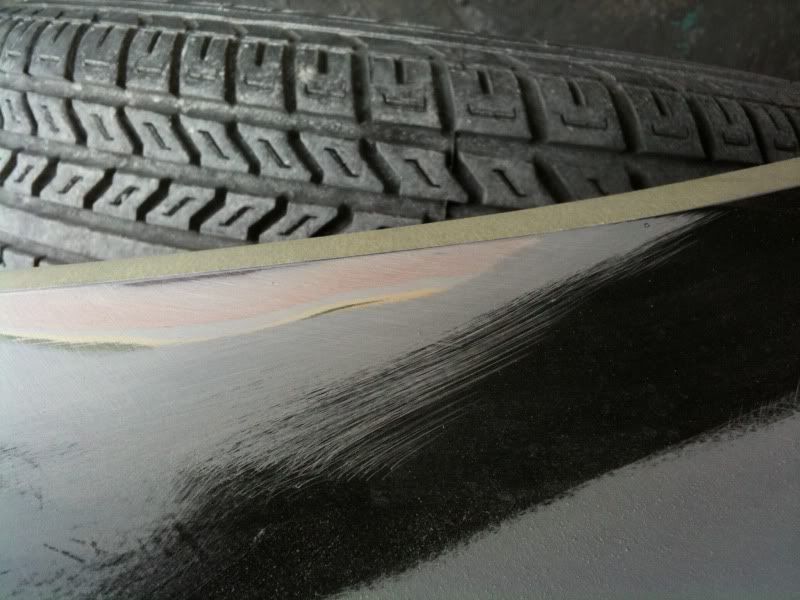

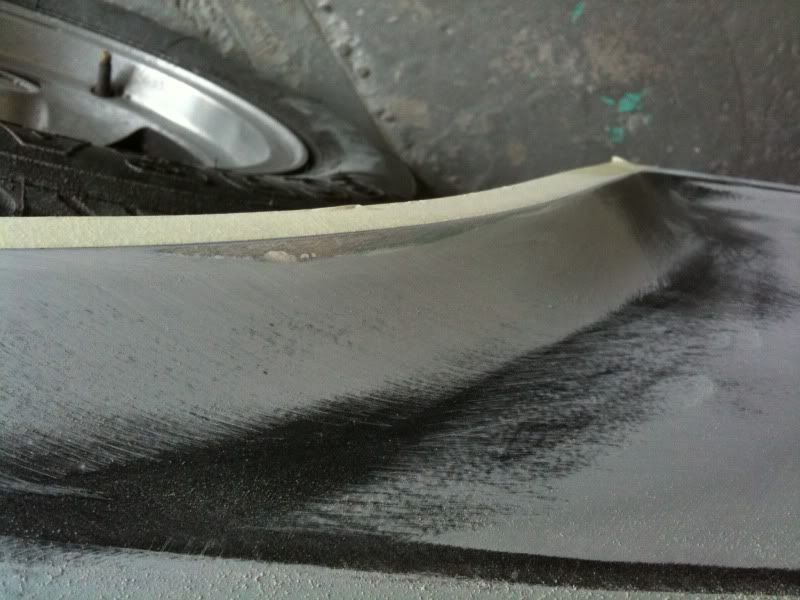

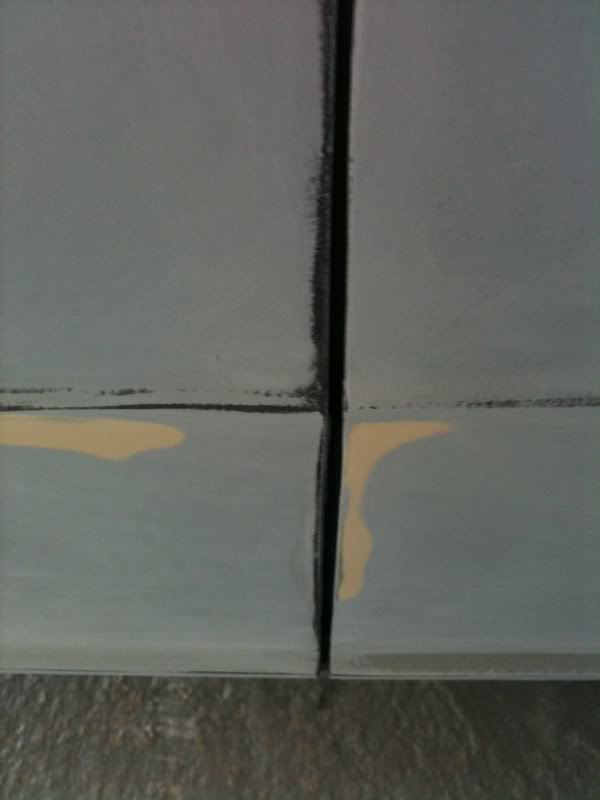

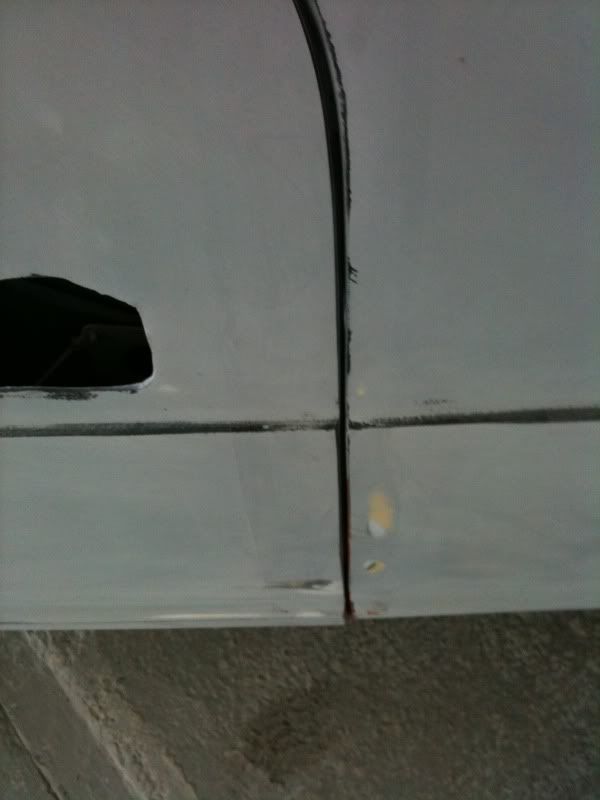

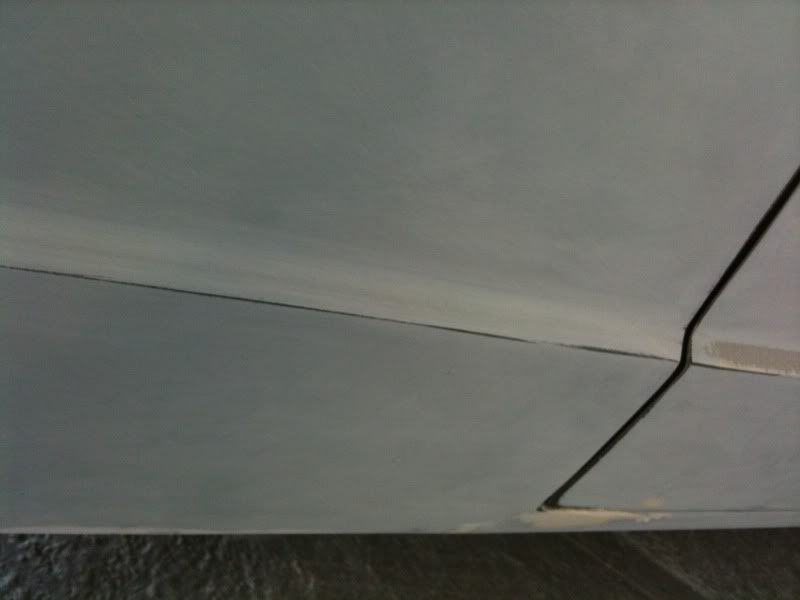

The wheels arches have been sharpened up and the door fit is incredible. When I look back at the original photos of the doors, I'm amazed that Ryan and his team have managed to get them to fit so well.

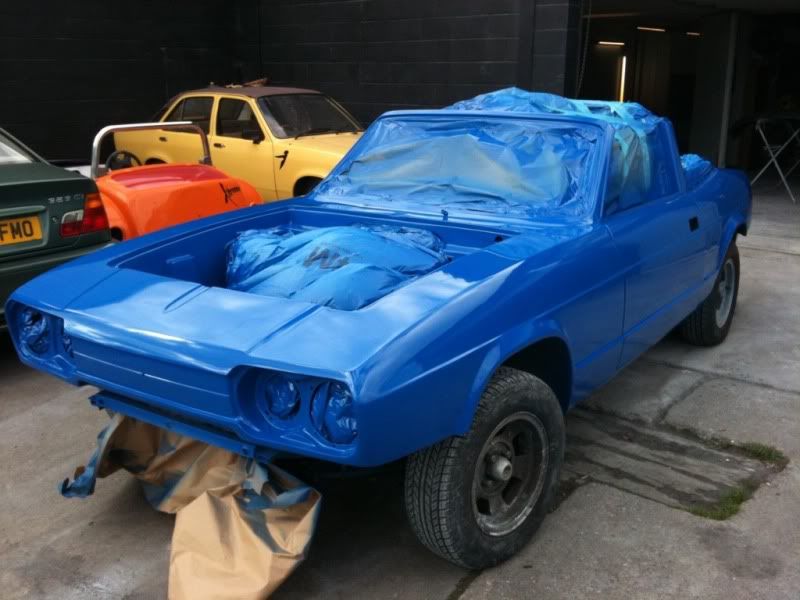

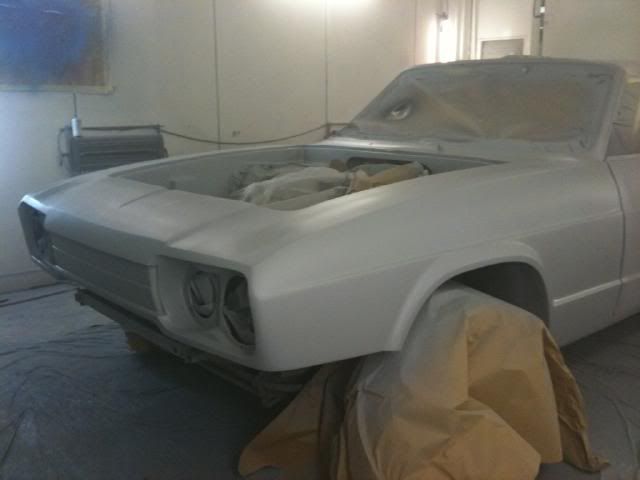

The car is now blue, but not the final blue. The idea is that the car will be finished to a good standard in this blue, and when Ryan is happy with it he'll paint it in the final colour. He shouldn't have to make any corrections as they'll have been done on the 1st lot of blue. I can't wait !!!



Steve
Current:- SS1 Ti RG sprint car, Honda S2000, VW Touareg 3.0 V6
Prev:- Sabre Ti, 3xSS1 Ti, SS1 16v Turbo Racer, 5XGTC, 2XSE6B, 2XSE5A, 2XV6 Coupe, Sabre 6
Project Threads & YouTube

“It's not the winning, it's the taking apart that counts"

User avatar
Corky
RSSOC Member
Posts: 11234
Joined: Sun Sep 24, 2006 5:02 am
Location: Macclesfield
Has thanked: 255 times
Been thanked: 215 times

Re: eBay GTC Restoration (now with added paint and rust free)

Post by Corky » Fri Sep 10, 2010 12:48 pm

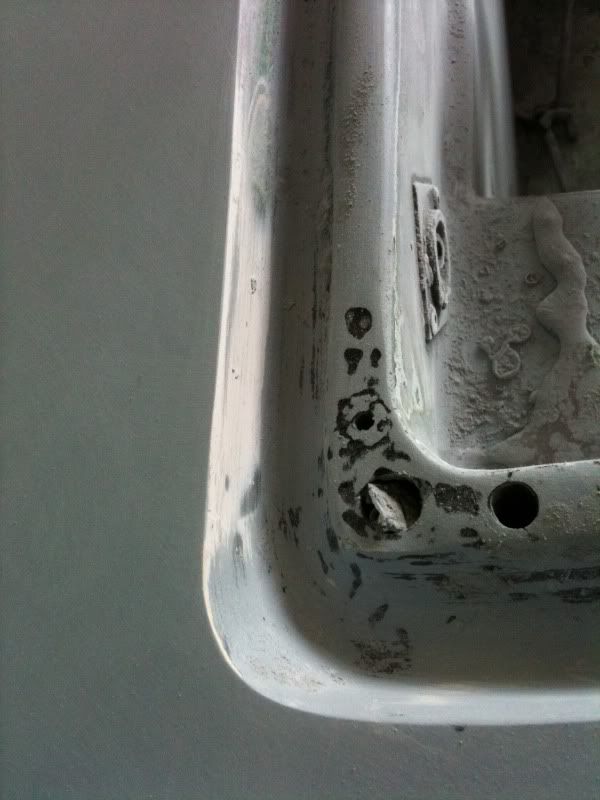

And whilst all of the above has been going on, I've decided to refinish all the door cards and the centre console. These will be painted in the same silk black finish as the seat frames and ash trays (I'll post some photos when they're done.

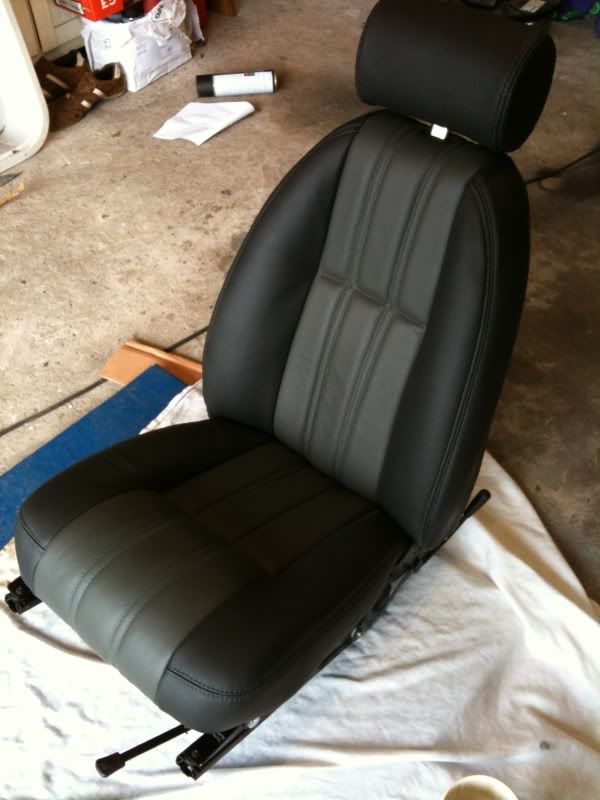

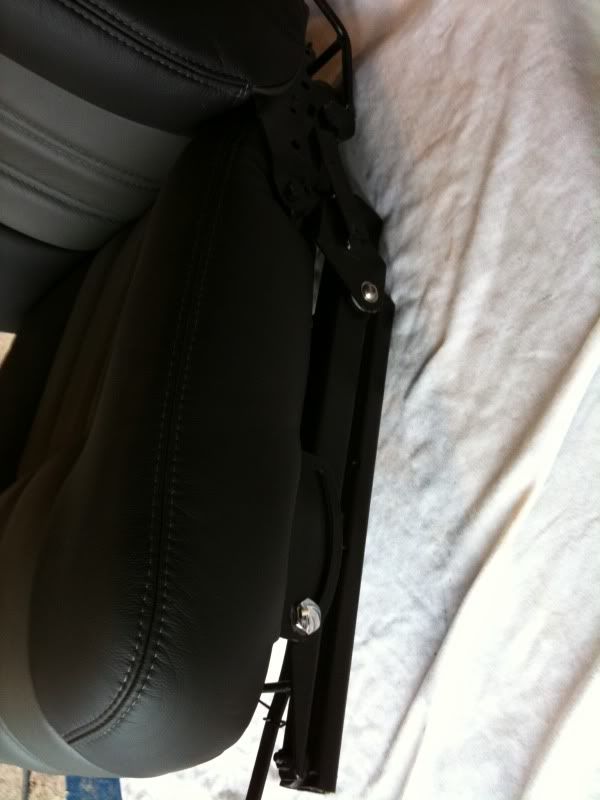

I've also built the seats back up on their frames and greased the runners. Luckily the pivot bolts still had their chrome and just needed a polish, I replaced the other bolts with stainless fasteners.

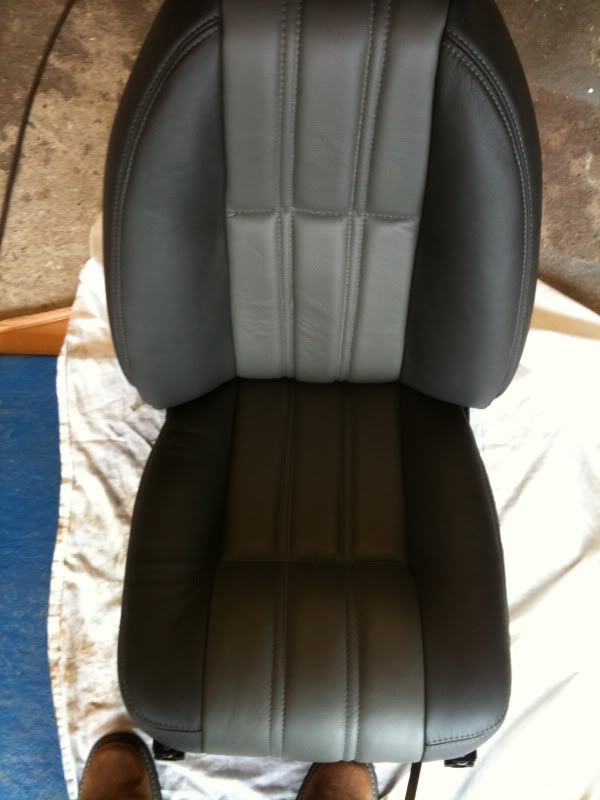

The chap who trimmed the seats has altered them so the base is wider at the point where it meets the back. This means that you don't get to see as much of the tilt mechanism as you did with the originals.
