Re: Swoakes SS1 "In DE(b)T" Sprint Car Front Brakes

Post by philhoward » Wed Aug 20, 2014 12:45 pm

Anyone else spot that GW had vented SS1 brakes for sale at Curbs? :w


Phil Howard
Scimitarweb Forum Admin
SS1 1600 Rooster Turbo; Sabre Mk1.5, Sabre Mk2
Previous: SE5/5a/SS1 No.1/SS1 Rooster/SS1 1800Ti/SE5a 24 Valve
http://www.ss1turbo.com
Never try and argue with an idiot. They drag you down to their level, then beat you based on experience.

User avatar
swoakes
RSSOC Member
Posts: 6918
Joined: Thu Sep 21, 2006 12:23 pm
Location: Cheshire, UK
Has thanked: 37 times
Been thanked: 98 times

Re: Swoakes SS1 "In DE(b)T" Sprint Car Front Brakes

Post by swoakes » Wed Aug 20, 2014 12:46 pm

scimjim wrote:that was my understanding too - but AFAIK it wasn't added to this years regs - will it definitely be in next years?

I'm going to start a new thread for 2015 regs discussions I think :-)
Glad you said that Jim and not me :wink:

I think a discussion thread would be a good idea but I'm not sure all will agree :lol:


Steve Oakes
SS1 DET Sprint Car

Former cars
SS1 DET Turbo sprint Project
Sabre Ti
SS1 Ti
1971 Yellow 5a
1985 SS1 1600
1978 Green/Silver 6a

"Fail to prepare and you are preparing to fail."
Benjamin Franklin

User avatar
swoakes
RSSOC Member
Posts: 6918
Joined: Thu Sep 21, 2006 12:23 pm
Location: Cheshire, UK
Has thanked: 37 times
Been thanked: 98 times

Re: Swoakes SS1 "In DE(b)T" Sprint Car Front Brakes

Post by swoakes » Wed Aug 20, 2014 12:47 pm

philhoward wrote:Anyone else spot that GW had vented SS1 brakes for sale at Curbs? :w
Their last set I believe a snip at £500 :shock: (reduced from £900 apparently)


Steve Oakes
SS1 DET Sprint Car

Former cars
SS1 DET Turbo sprint Project
Sabre Ti
SS1 Ti
1971 Yellow 5a
1985 SS1 1600
1978 Green/Silver 6a

"Fail to prepare and you are preparing to fail."
Benjamin Franklin

User avatar
scimjim
RSSOC Member
Posts: 37689
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 136 times
Been thanked: 965 times

Re: Swoakes SS1 "In DE(b)T" Sprint Car Front Brakes

Post by scimjim » Wed Aug 20, 2014 12:59 pm

yes it was their last set - discussions ARE still ongoing regarding remanufacture though (not by me :-))


Jim King

SECURE DRY STORAGE FOR YOUR SCIMITAR

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), 1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
scimjim
RSSOC Member
Posts: 37689
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 136 times
Been thanked: 965 times

Re: Swoakes SS1 "In DE(b)T" Sprint Car Front Brakes

Post by scimjim » Wed Aug 20, 2014 1:01 pm

swoakes wrote:
scimjim wrote:that was my understanding too - but AFAIK it wasn't added to this years regs - will it definitely be in next years?

I'm going to start a new thread for 2015 regs discussions I think :-)
Glad you said that Jim and not me :wink:

I think a discussion thread would be a good idea but I'm not sure all will agree :lol:
As far as I'm concerned the compsec has published his decision on big brakes - nothing's changed since?


Jim King

SECURE DRY STORAGE FOR YOUR SCIMITAR

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), 1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
Raz987
Posts: 1061
Joined: Sun Jul 08, 2007 12:18 pm
Location: RAF Marham, Norfolk

Re: Swoakes SS1 "In DE(b)T" Sprint Car arrives

Post by Raz987 » Sat Aug 30, 2014 10:53 am

swoakes wrote: Front Wilwood calipers and Rover 625 discs (odd pair so not sure which one is correct :? I have asked Raz to see if he has matching pair :) )

Hi Steve, what are the diameters of those two discs? Are they both solid? From memory, the left disc looks like it could be the MR2 disc (high offset, low swept area, solid) Is it 263mm diameter? If so, that's MR2 Mk1 rear disc.
I can confirm that neither of those are Rover 625, the 625 discs I had would not have been in wrapping and I'm pretty sure I scrapped them as I never intended to go back to them.
Is the one on the right 45mm high vented? If it is that is the disc you need for the front, intended to redrill for bolting to the back of the SS1 hub, as per Paul Turnbulls car iirc. I can't remember what it's off exactly, but I'm sure it's rover 200/25/MG. May need the diameter turning down, but I'm sure the offset is perfect.
Last edited by Raz987 on Sat Aug 30, 2014 11:21 am, edited 2 times in total.


Raz
Ex-SS1 Ti Circuit Racer
Pug 206 GTi Circuit Racer

User avatar
Raz987
Posts: 1061
Joined: Sun Jul 08, 2007 12:18 pm
Location: RAF Marham, Norfolk

Re: Swoakes SS1 "In DE(b)T" Sprint Car work starts

Post by Raz987 » Sat Aug 30, 2014 10:59 am

Corky wrote:
swoakes wrote:Cheers Steve; I'll have a measure of the willwoods.
Steve, see below from another thread. I think this may answer your question. Looking at the photos, you'll need to use a spacer to get the wheels on (looks 15-20mm to me). On the plus side, the piston sizes are comparable to the Volvo four pots, so should work well with the 22.2mm master cylinder upgrade and bigger wheel cylinders.
Raz987 wrote:So my plan is/was to use Wilwood NDL (Narrow Dynalite) calipers as they bolt straight up to the 88.9mm mounting of the standard upright. One appeared on eBay last week so I snapped it up for £70 (RRP £120) :D
http://www.rallydesign.co.uk/product_in ... ts_id=8309
It's a 120-4982, so it's 35mm pistons and spaced for a 30mm disc. I had originally planned on using a Nissan 300ZX disc (280mm dia, 30mm thick, 54mm height) but after mounting the caliper to the upright and taking some measurements, it's not going to be possible. It needs a disc 30mm thick, 252mm dia and 70mm height (I want to put it over the studs), which I've had no luck finding. Diameter is not necessarily the problem, it's height.
So, it looks like I'll have to use a 45mm height disc bolted to the back of the hub, as per Paul Turnbulls thread. This would be a 21mm or 25mm thick disc though. So, does anyone know if I can remove one of the ally spacers from the caliper to make it suitable for a 21mm disc?:


That is a different caliper to the ones I sold to Steve, I sold him Superlites, not NDL. It does answer the question as to what disc is currently fitted to the front of the car though...


Raz
Ex-SS1 Ti Circuit Racer
Pug 206 GTi Circuit Racer

User avatar
Raz987
Posts: 1061
Joined: Sun Jul 08, 2007 12:18 pm
Location: RAF Marham, Norfolk

Re: Swoakes SS1 "In DE(b)T" Sprint Car work starts

Post by Raz987 » Sat Aug 30, 2014 11:03 am

swoakes wrote:
The car is now up on stands and wheel removed so that I can see what behind them. Discs fitted to front are mismatched one being much a much "thicker" vented disc than the other.

300ZX disc, machined down in diameter and redrilled to mount to the back of the standard SS1 hub. I made a bracket to mount Nissan Skyline GTR calipers to the SS1 upright. Stupid idea, massive overkill. SCRAP


Raz
Ex-SS1 Ti Circuit Racer
Pug 206 GTi Circuit Racer

User avatar
Raz987
Posts: 1061
Joined: Sun Jul 08, 2007 12:18 pm
Location: RAF Marham, Norfolk

Re: Swoakes SS1 "In DE(b)T" Sprint Car work starts

Post by Raz987 » Sat Aug 30, 2014 11:06 am

swoakes wrote: Image
Rover 625(825?) disc. Note redrilled mounting holes and machined diameter reduction. SCRAP


Raz
Ex-SS1 Ti Circuit Racer
Pug 206 GTi Circuit Racer

User avatar
Raz987
Posts: 1061
Joined: Sun Jul 08, 2007 12:18 pm
Location: RAF Marham, Norfolk

Re: Swoakes SS1 "In DE(b)T" Sprint Car Front Brakes

Post by Raz987 » Sat Aug 30, 2014 11:13 am

I hope that helps. Apologies for leaving you with so many random bits of projects, I can imagine it's made it difficult to gain direction. I should have removed all the previous attempts from the equation (I should have done a lot of things...)
Raz


Raz
Ex-SS1 Ti Circuit Racer
Pug 206 GTi Circuit Racer

User avatar
Raz987
Posts: 1061
Joined: Sun Jul 08, 2007 12:18 pm
Location: RAF Marham, Norfolk

Re: Swoakes SS1 "In DE(b)T" Sprint Car work starts

Post by Raz987 » Sat Aug 30, 2014 11:20 am

CNHSS1 wrote:until you decide on calipers, id hold off the master cylinder purchase. Id check the piston sizes in the wilwoods as theres no guarantee they are the right size for the OEM master cylinder... (its an RAF thing ;-) )
Craig, I had a choice of piston sizes to choose from and I'm 99.9% sure that I chose these ones based on running a standard MC.


Raz
Ex-SS1 Ti Circuit Racer
Pug 206 GTi Circuit Racer

User avatar
swoakes
RSSOC Member
Posts: 6918
Joined: Thu Sep 21, 2006 12:23 pm
Location: Cheshire, UK
Has thanked: 37 times
Been thanked: 98 times

Re: Swoakes SS1 "In DE(b)T" Sprint Car Front Brakes

Post by swoakes » Sun Aug 31, 2014 9:28 pm

Hi Raz..thanks for the input.

I have a set of new uprights fitted with modified discs from Steve Cork that I plan to fit some Willwood superlites onto using a custom bracket (Josh has the Willwoods you sold me). Steve Cork has done this on his racer and this setup allows 13" wheels to be fitted which seems to work very well judging by how well he & Craig are both doing.


Steve Oakes
SS1 DET Sprint Car

Former cars
SS1 DET Turbo sprint Project
Sabre Ti
SS1 Ti
1971 Yellow 5a
1985 SS1 1600
1978 Green/Silver 6a

"Fail to prepare and you are preparing to fail."
Benjamin Franklin

User avatar
swoakes
RSSOC Member
Posts: 6918
Joined: Thu Sep 21, 2006 12:23 pm
Location: Cheshire, UK
Has thanked: 37 times
Been thanked: 98 times

Re: Swoakes SS1 "In DE(b)T" Sprint Work starts!

Post by swoakes » Thu Apr 09, 2015 4:46 pm

Well finally got my ar$e in the garage and made a start :roll: :oops:

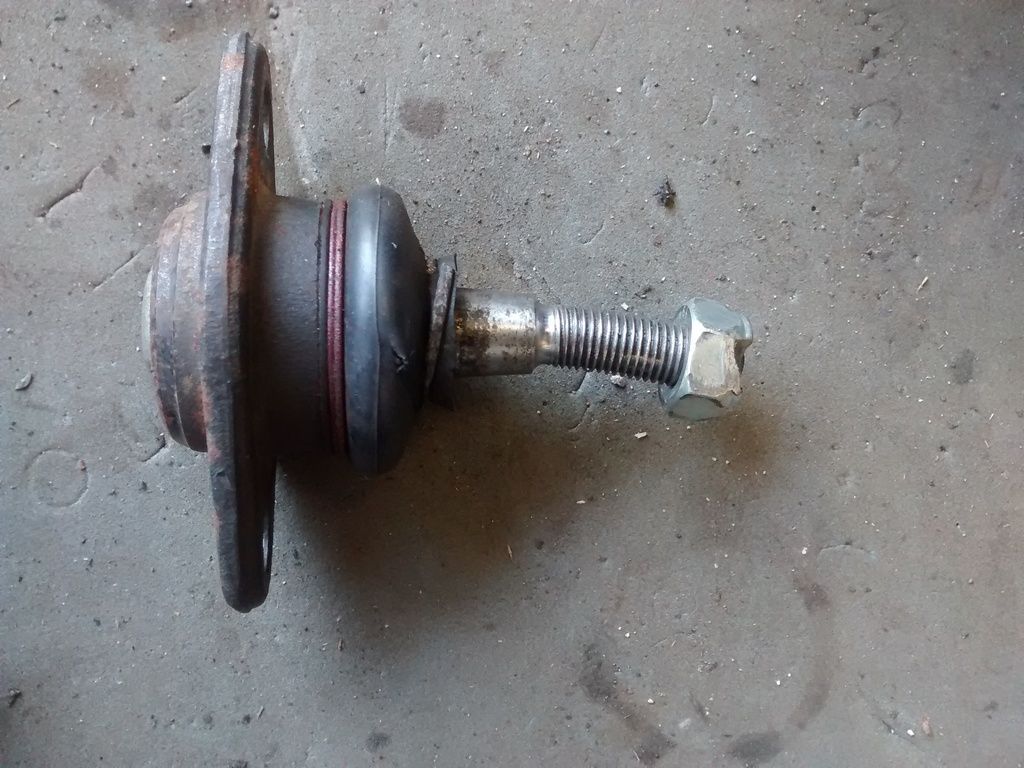

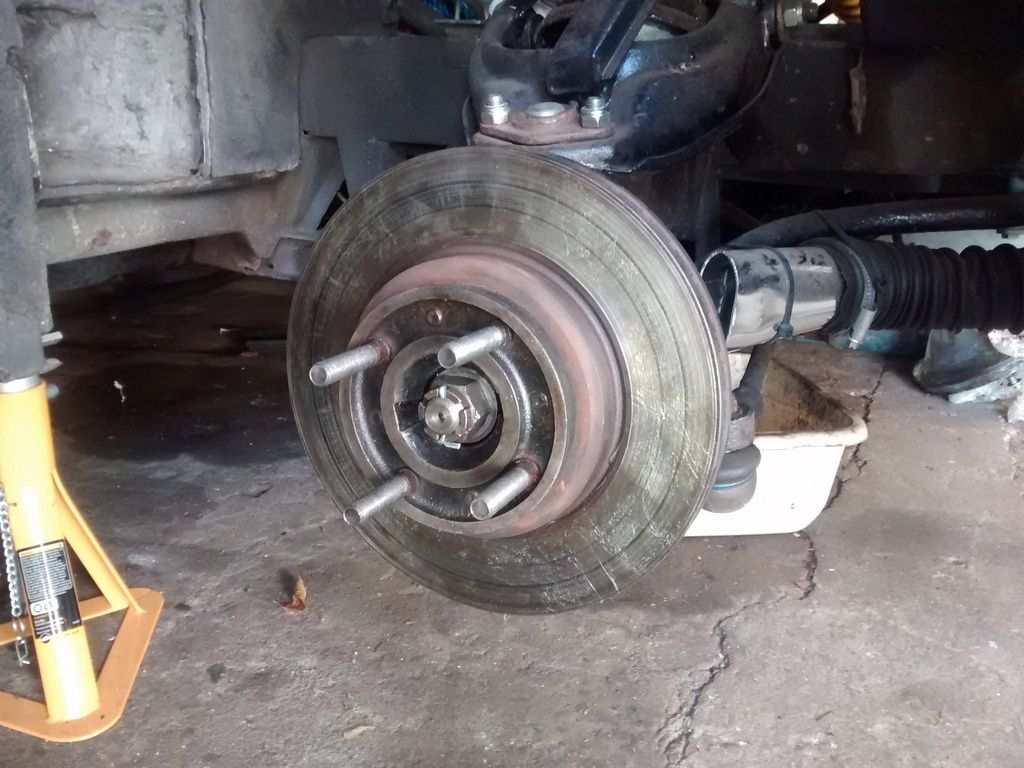

I thought I'd start easy and fit the replacement uprights from Corky fitted with turned down MG discs; my Wilwoods should bolt straight on when they are removed from a certain yellow 5a :roll: . The NS is fitted but the other side will have to wait for a new top ball joint as I bent it breaking the taper with my new scissor type splitter :roll: :evil:



I have also taken the OS rear trailing arm off so that I can fit the drum back plate removed by Raz to start fitting discs (I'm going back to drums) and to enable me to drill out the broken rear anti-roll bar link and replace with the BMW type. That is now done and the back plate is cleaned and is awaiting paint before refitting.

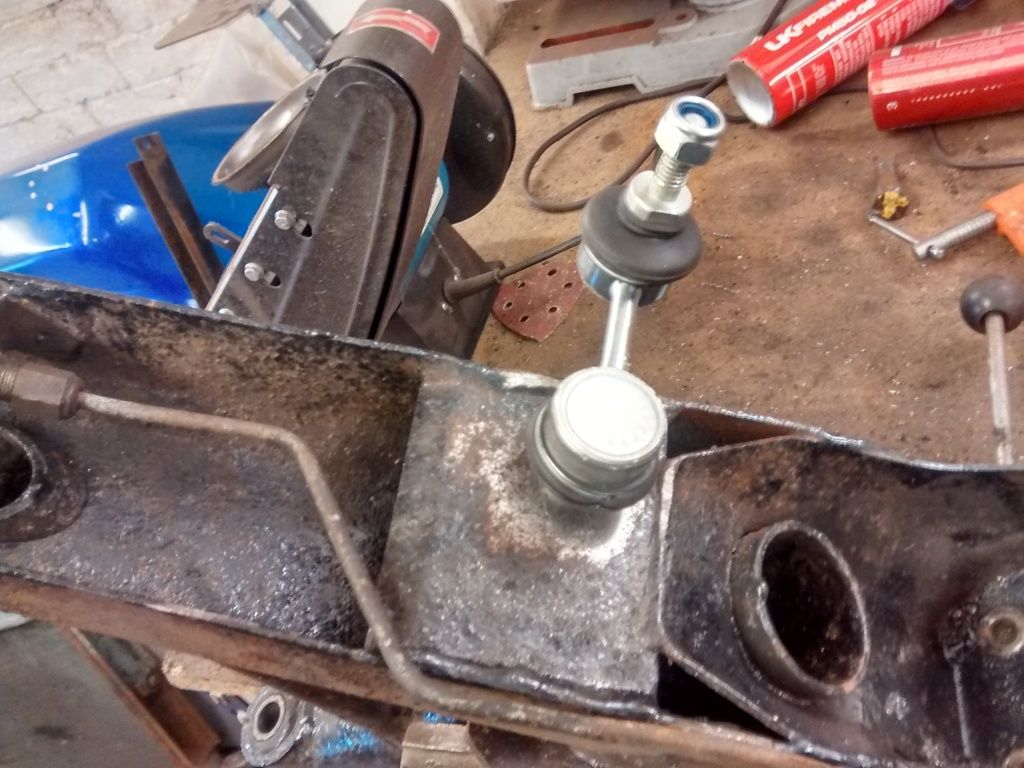

As regards the BMX drop links; they are 10mm and the holes in the ARB are 12mm I think; am I best to weld a M10 washer both sides before I fit :?:


Steve Oakes
SS1 DET Sprint Car

Former cars
SS1 DET Turbo sprint Project
Sabre Ti
SS1 Ti
1971 Yellow 5a
1985 SS1 1600
1978 Green/Silver 6a

"Fail to prepare and you are preparing to fail."
Benjamin Franklin

User avatar
scimjim
RSSOC Member
Posts: 37689
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 136 times
Been thanked: 965 times

Re: Swoakes SS1 "In DE(b)T" Sprint Car Work starts!

Post by scimjim » Thu Apr 09, 2015 5:04 pm

You could simply drill another hole - I'm probably fitting helicoil inserts in the existing thread.


Jim King

SECURE DRY STORAGE FOR YOUR SCIMITAR

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), 1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
philhoward
RSSOC Member
Posts: 25028
Joined: Tue Aug 29, 2006 5:41 pm
Location: Staffs, UK
Has thanked: 51 times
Been thanked: 616 times
Contact:

Re: Swoakes SS1 "In DE(b)T" Sprint Car Work starts!

Post by philhoward » Thu Apr 09, 2015 8:05 pm

Ah - reminds me. New bag of M10 helicoils arrived today :mrgreen:


Phil Howard
Scimitarweb Forum Admin
SS1 1600 Rooster Turbo; Sabre Mk1.5, Sabre Mk2
Previous: SE5/5a/SS1 No.1/SS1 Rooster/SS1 1800Ti/SE5a 24 Valve
http://www.ss1turbo.com
Never try and argue with an idiot. They drag you down to their level, then beat you based on experience.
