I will move away from the chassis for now and report on the engine that will power this car.



Engine Saga;

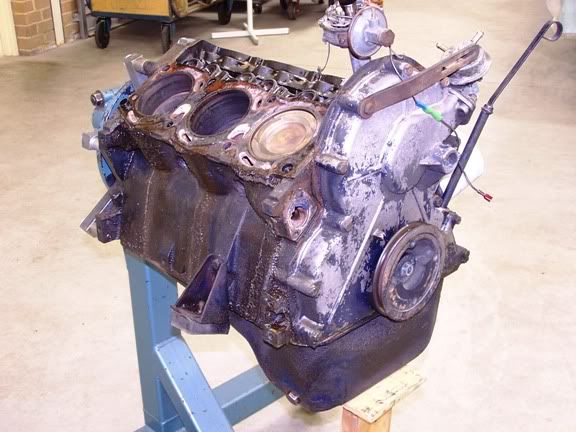

This car was still fitted with the original 2.5 litre engine and gearbox when I acquired it some years ago. On the long journey home from Adelaide water started blowing out of the right side tailpipe due to a leaking head gasket and it got worse the more we travelled. This was not of great concern to me at the time (long as it got me home) as I already had plans for a performance engine build.

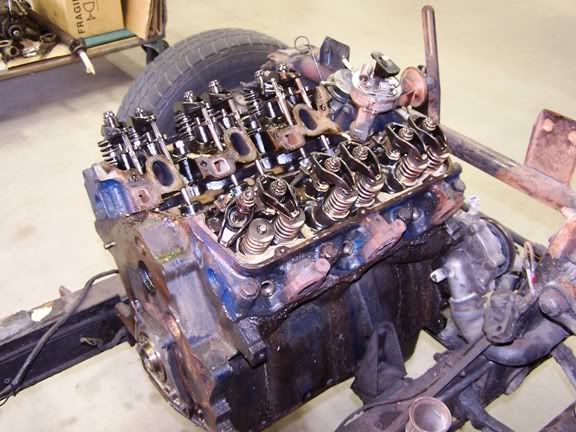

Early into the project I stripped the engine down to assess its condition, and upon inspection concluded that it was not repairable due to massive water jacket corrosion in block and heads.



I then started searching for another engine to rebuild and soon found a 3 litre which I purchased. Upon dismantling this engine, I found that it too, was not fit for rebuilding as it had overheated drastically at some stage and the pistons and bores where badly gouged and the bores already oversize. I then purchased another 3 litre and would you believe this one was also no good as it had worn bores and was already .060” O/S.

Now I was becoming very concerned, as these engines are scarce in Australia and I could not find any others at the time. The only Essex V6 sold here was in the MK1 Capri (round port), we never got the D port or the Cologne here. These Capris are now over 40 years old, and the few engines still around are now much worn.

Obtaining a decent Essex core to rebuild was becoming a real issue, and as much as I wanted use the correct Ford engine, necessity started me contemplating doing an engine conversion. I researched many different types of engines, 4-6-8 cylinder engines and Rotaries, but in the end I concluded that this is not what I want, as without an Essex it would not be the car I set out to build.

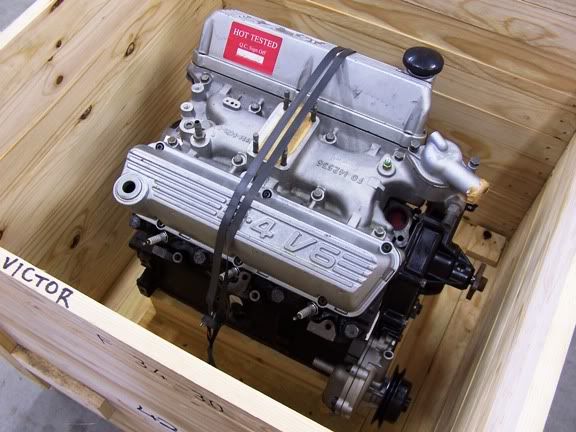

Then around this time I come across brand new South African built 3.4L Essex engines for sale on EBay. The prospect of a brand new Essex appealed to me greatly, and I quickly made contact with the UK vendor selling these engines requesting more information. I then made mention of these engines to other Essex enthusiasts around here, and to cut a long story short, we bulk purchased 7 engines between us and I had them shipped to Australia. After much waiting, they finally arrived in their original Ford timber boxes, and it was pure joy to open up each box and see a brand new Essex long engine in all its glory. A sticker is attached to the alloy rocker covers claiming they had been hot run tested and signed off as OK.

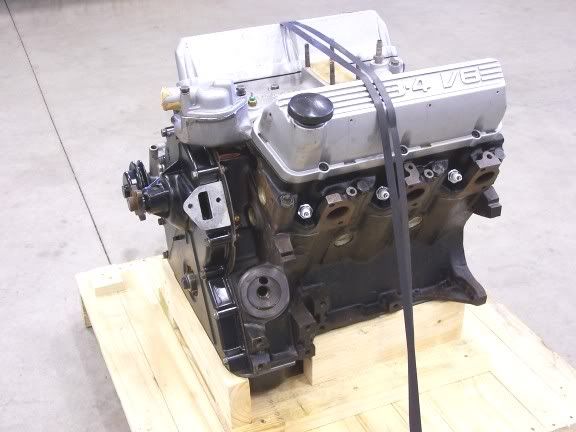

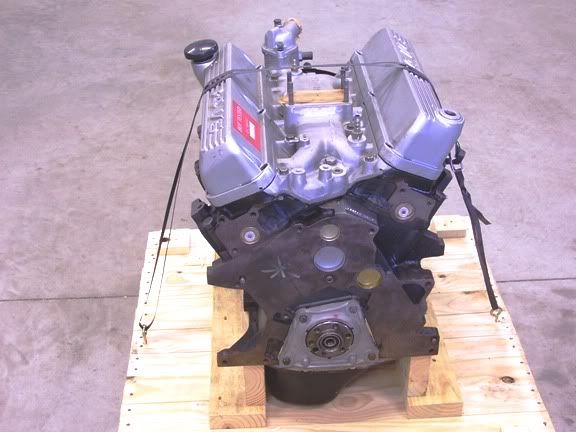

These long engines are complete from intake manifold to sump, but without carburettor, flywheel, harmonic balancer and most other external hardware.



Fortunately the 2.5 and 3 litre flywheel and harmonic balancer will fit these engines, but a rebalancing of the complete reciprocating assembly is required due to the external balancing counterweights on flywheel and balancer.

The rebalancing necessitates a total engine strip down to access all parts, including removing pistons from conrods. This did not concern me, as I wanted to strip this engine down anyway to carry out some tuning and blueprint.

Upon dismantling this engine my joy very quickly turned to horror, as inspection revealed many flaws and problems with this new engine, and I was absolutely horrified as to the overall bad state of most components and how rough it had been assembled.

The problems were numerous and include;

Badly scored rockers and rocker shafts (yes these engines have rocker shafts) due to oil never reaching the rocker gear during hot run testing.
Rocker posts deformed due to over tightening.
Both rocker shafts bent.
Cylinder bores are .020” oversize.
Connecting rod bolt heads rounded off.
Poorly machined surfaces.
Main bearing tunnel bores diameter not within specs.
Rear portion of block had been welded.
Valve springs on the verge of coil bind.


The list of problems is very long and I will not bore you with it all.

I was truly gutted upon these findings. I had paid for and expected a brand new engine devoid of any flaws or problems, and instead ended up with this live grenade. At best this new engine was made up of reject parts, the machining of all surfaces very poor and the assembly process atrocious. This engine would not have lasted a run around the block without a major failure.


I let the UK seller know of my findings; but he could not care less and totally ignored me. He did not return any of my repeated phone calls or respond to my emails. The fact that I had purchased 7 engines from him did not account for much apparently, so I was stuck with it. This engine had already cost me a lot of money and effort to obtain, and in its present state was only fit to be used as a doorstop.
I had become very disheartened by this stage; this was the fourth engine I had pulled apart, and still no closer to finding a decent core to build. This project was at a very low point by then, so much so that I lost interest, counted my losses and stopped working on it.

Some time later I started thinking about this engine again with a clearer mind, and concluded that even though there are several problems it was not beyond saving, although it will consume far more work and money to make it right. On the plus side; the 3.4L engine has some benefits over the old 3 litre from a performance viewpoint, possibly making it worth persevering with under these circumstances.
The 3.4L compared to 3L;

Larger capacity (needless to say).
The crank pin journals are .250” smaller in diameter, resulting in lower bearing speed, a big plus at higher RPM.
The forged 2.8 - 2.9 Cologne V6 connecting rods used in these engines weigh much less.
The German made pistons used weigh considerably less, and have Moly coating on skirts.
The camshaft has more aggressive timing.
D port heads with larger exhaust valves.


There are also unique differences compared to the 3 litre.
These include;

Unique cylinder head castings.
Totally redesigned rocker gear featuring shaft mounted rockers rather than fulcrum rockers. I have yet to understand why Ford SA made this drastic alteration to the rocker gear which necessitated a major redesign of the cylinder head, with no obvious advantage.
The rocker arms and rocker posts used are from a 2.8 – 2.9 Cologne, but the rocker shafts are unique.
An oil gallery is cast into centre of each cylinder head to feed oil to the rocker gear (there is also corresponding oil gallery holes in engine block).
The pushrods are solid with no oiling hole.
The exhaust manifold bolt pattern is different.
The rocker cover bolt hole located at top - centre is in a different location, necessitating unique rocker covers.
The intake manifold features larger better flowing runners, but distribution is still awful.

Eventually I concluded that under these circumstances my only option was to repair this engine and carry on with the build as originally planned. I will also be carrying out some tuning and modifications along the way, so stay tuned.


Next instalment;
Performance building this boat anchor.
