4HA LSD Jag Donor Spacers

Post by 1969SE5 » Sat May 10, 2014 1:41 pm

hi all
i am after some help please, i am retro fitting a Jag Lsd to my SE5, i require spacers to fit in the diff, to overcome the sliding 1/2 shafts. has anyone done this already, that would have either spare spacers, or drawings to get some made up ?

all help, as ever, much appreciated.

cheers

David


“Speed has never killed anyone, suddenly becoming stationary… that’s what gets you.”

philynnbob
RSSOC Member
Posts: 467
Joined: Sat May 16, 2009 6:37 pm
Location: Nr Aberystwyth
Has thanked: 62 times
Been thanked: 20 times

Re: 4HA LSD Jag Donor Spacers

Post by philynnbob » Sat May 10, 2014 7:59 pm

http://www.ebay.co.uk/itm/111348788742? ... 26_rdc%3D1
It might be worth asking this seller nicely as he has made these spacers already.



User avatar
1969SE5
RSSOC Member
Posts: 504
Joined: Wed Nov 07, 2012 12:36 am
Location: Kidderminster, Worcestershire
Has thanked: 4 times
Been thanked: 5 times

Re: 4HA LSD Jag Donor Spacers

Post by 1969SE5 » Sat May 10, 2014 8:40 pm

good thinking, great minds think alike, already done that, he does not want to sell on their own, and reckons he has no scanner to send me a copy of the drawings, nor can he remember where he downloaded them from, so total dead end, many thanks for taking the time to forward to me, much appreciated.
cheers


“Speed has never killed anyone, suddenly becoming stationary… that’s what gets you.”

User avatar
GavinR
RSSOC Member
Posts: 414
Joined: Thu Dec 02, 2010 12:31 am
Location: Bristol
Has thanked: 3 times
Been thanked: 15 times

Re: 4HA LSD Jag Donor Spacers

Post by GavinR » Mon May 12, 2014 12:44 am

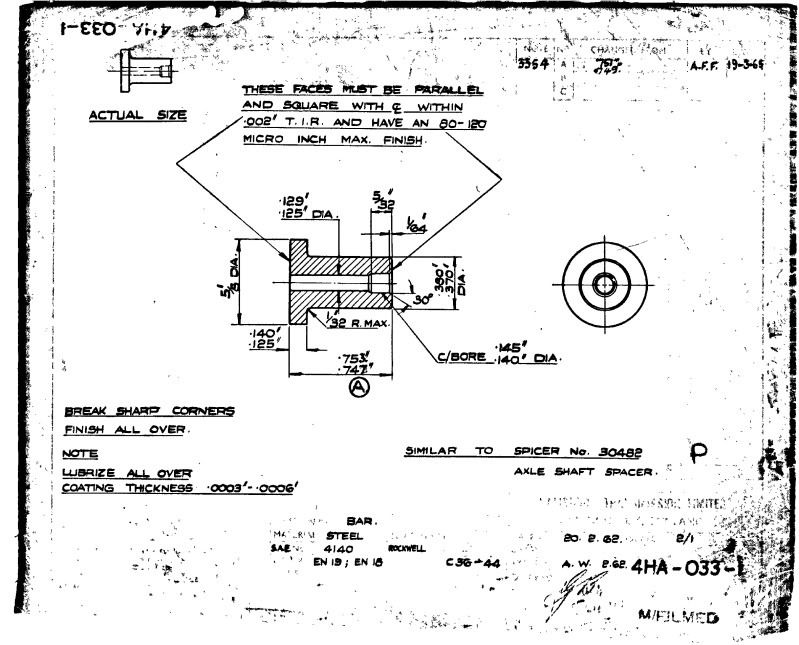

Found this after a bit of searching...


From this thread http://www.rodsnsods.co.uk/forum/tech-d ... axle-41394
You will need 2 and a roll pin the join the 2 halves through the diff cross pin and it sounds like getting them hardened is important otherwise they will wear against the ends of the halfshafts, thus affecting the end float...


GavinR
RSSOC Member 3513
1971 SE5a

User avatar
GavinR
RSSOC Member
Posts: 414
Joined: Thu Dec 02, 2010 12:31 am
Location: Bristol
Has thanked: 3 times
Been thanked: 15 times

Re: 4HA LSD Jag Donor Spacers

Post by GavinR » Mon May 12, 2014 12:52 am

And a Jag specialist who sells them
David Manners Part 7687/8
- not cheap though at £66.71 though I assume this is for a pair of spacers and the roll pin
(Part No 7687 is the spacer and 7688 is the roll pin)


GavinR
RSSOC Member 3513
1971 SE5a

User avatar
1969SE5
RSSOC Member
Posts: 504
Joined: Wed Nov 07, 2012 12:36 am
Location: Kidderminster, Worcestershire
Has thanked: 4 times
Been thanked: 5 times

Re: 4HA LSD Jag Donor Spacers

Post by 1969SE5 » Mon May 12, 2014 2:31 pm

Gavin that's fantastic, thank you so much for your efforts. cheers


“Speed has never killed anyone, suddenly becoming stationary… that’s what gets you.”

User avatar
scimjim
RSSOC Member
Posts: 35665
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 113 times
Been thanked: 813 times

Re: 4HA LSD Jag Donor Spacers

Post by scimjim » Mon May 12, 2014 4:10 pm

Worthy of a sticky I reckon?


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

Revingtosh
RSSOC Member
Posts: 66
Joined: Sun Feb 26, 2017 12:31 am
Has thanked: 4 times
Been thanked: 2 times

Re: 4HA LSD Jag Donor Spacers

Post by Revingtosh » Fri Mar 17, 2017 9:00 pm

Thanks for this - all hail the power of the search button!!



User avatar
Coupe Racing
RSSOC Member
Posts: 7030
Joined: Mon Jul 23, 2007 10:51 pm
Location: Nr Telford - Shropshire
Has thanked: 7 times
Been thanked: 80 times

Re: 4HA LSD Jag Donor Spacers

Post by Coupe Racing » Tue Mar 21, 2017 10:10 am

and currently advertised on Ebay too
