SE 5 hose sizes

Post by Gillsfan » Mon Jun 04, 2012 8:56 am

I'm looking at silicon hoses for Smurf, I know GW and QRG have some. I'm investigating other options, does anyone know the hose sizes I need ? I assume there are measured by internal diameter. I had a quick look but wasn't sure I was measuring it right.


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
Gillsfan
Posts: 3018
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 7 times
Been thanked: 18 times

Re: SE 5 hose sizes

Post by Gillsfan » Mon Jun 04, 2012 9:08 am

Just so you don't think i'm more of an idiot than you already do :D I measured the hose from the top of the rad to the expansion tank and got different measurements at each end but it appears to be a single size hose. I'll be checking again when I haven't got a 6 and a 4 year old looking for my attention, just wondered if someone knew already.


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
Coupe Racing
RSSOC Member
Posts: 6882
Joined: Mon Jul 23, 2007 10:51 pm
Location: Nr Telford - Shropshire
Has thanked: 6 times
Been thanked: 72 times

Re: SE 5 hose sizes

Post by Coupe Racing » Mon Jun 04, 2012 9:23 am

it does from memory change dia on that hose - just like the top rad hose


Blessed are the Cheese makers

Better to be an hour early than 1 minute late

User avatar
Coupe Racing
RSSOC Member
Posts: 6882
Joined: Mon Jul 23, 2007 10:51 pm
Location: Nr Telford - Shropshire
Has thanked: 6 times
Been thanked: 72 times

Re: SE 5 hose sizes

Post by Coupe Racing » Mon Jun 04, 2012 9:26 am

Gillsfan wrote:I'm looking at silicon hoses for Smurf, I know GW and QRG have some. I'm investigating other options, does anyone know the hose sizes I need ? I assume there are measured by internal diameter. I had a quick look but wasn't sure I was measuring it right.

I have a thread in the SE5 section ref hoses - and I am VERY disappointed about the state and quality of the hoses supplied by those that we support.
Many dimensions of several hoses do not meet the pattern length of the original , and next to none have been cut square.

make sure if going silicone route - then get the thicker ones as 3mm have been known to leak from time to time


Blessed are the Cheese makers

Better to be an hour early than 1 minute late

User avatar
Gillsfan
Posts: 3018
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 7 times
Been thanked: 18 times

Re: SE 5 hose sizes

Post by Gillsfan » Mon Jun 04, 2012 9:38 am

Thank you, maybe I should look abit harder before posting. I even posted on your thread :oops:


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
Coupe Racing
RSSOC Member
Posts: 6882
Joined: Mon Jul 23, 2007 10:51 pm
Location: Nr Telford - Shropshire
Has thanked: 6 times
Been thanked: 72 times

Re: SE 5 hose sizes

Post by Coupe Racing » Mon Jun 04, 2012 9:40 am

Hi Steve

on your SE5 - is the heater pipe work on the drivers or passenger side of the bulkhead please


Blessed are the Cheese makers

Better to be an hour early than 1 minute late

User avatar
Gillsfan
Posts: 3018
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 7 times
Been thanked: 18 times

Re: SE 5 hose sizes

Post by Gillsfan » Mon Jun 04, 2012 9:47 am

From memory inlet is passenger side and outlet is drivers side.


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
Coupe Racing
RSSOC Member
Posts: 6882
Joined: Mon Jul 23, 2007 10:51 pm
Location: Nr Telford - Shropshire
Has thanked: 6 times
Been thanked: 72 times

Re: SE 5 hose sizes

Post by Coupe Racing » Mon Jun 04, 2012 9:48 am

when under bonnet next - could you confirm please


Blessed are the Cheese makers

Better to be an hour early than 1 minute late

User avatar
Gillsfan
Posts: 3018
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 7 times
Been thanked: 18 times

Re: SE 5 hose sizes

Post by Gillsfan » Mon Jun 04, 2012 11:08 am

Confirmed


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

User avatar
Gillsfan
Posts: 3018
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 7 times
Been thanked: 18 times

Re: SE 5 hose sizes

Post by Gillsfan » Tue Jun 05, 2012 7:22 am

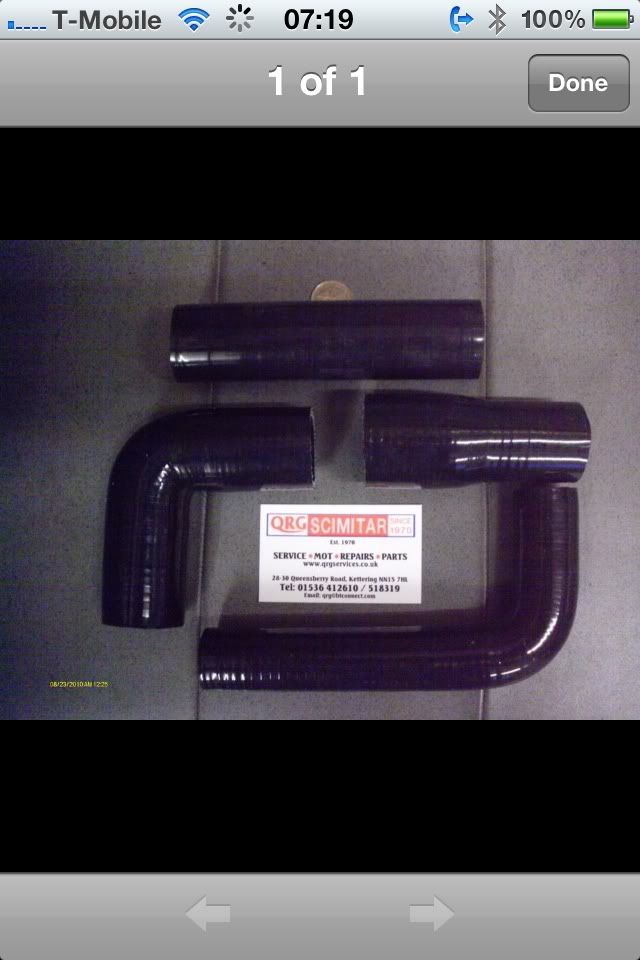

The other thread doesn't answer my question. I'm looking for the sizes for this set of hoses.



Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

hylton1806
RSSOC Member
Posts: 201
Joined: Fri Nov 20, 2009 7:32 pm
Location: NEWCASTLE
Has thanked: 2 times
Been thanked: 4 times

Re: SE 5 hose sizes

Post by hylton1806 » Tue Jun 05, 2012 10:46 am

Ref above.

Top 35id-45od 160 lg
Left 35id-45od 77mm x77mm internal
Right 40id-50od 35id-45od x110 lg
Bottom 25id-35od 185mm x 80 internal
Just bought a set and intend to fit them today. Have been told that the large one from the back of the water pump is going to be about 8 wks.I am just going to buy straight lengths off ebay for the rest. Any comments?
Hylton.
Last edited by hylton1806 on Tue Jun 05, 2012 11:04 am, edited 1 time in total.


My Dad said " Any fool can drive fast in a straight line its the corners that catch them out"

User avatar
Gillsfan
Posts: 3018
Joined: Wed Aug 19, 2009 7:58 am
Location: Somerton, Somerset.
Has thanked: 7 times
Been thanked: 18 times

Re: SE 5 hose sizes

Post by Gillsfan » Tue Jun 05, 2012 10:58 am

Thank you


Steve

What if the Hokey Cokey is what its all about

1969 SE 5 Manual O/D Rat Rod
RSSOC Jaffa cakes in a minute champion

hylton1806
RSSOC Member
Posts: 201
Joined: Fri Nov 20, 2009 7:32 pm
Location: NEWCASTLE
Has thanked: 2 times
Been thanked: 4 times

Re: SE 5 hose sizes

Post by hylton1806 » Tue Jun 05, 2012 11:06 am

Ammended, now with lengths added.


My Dad said " Any fool can drive fast in a straight line its the corners that catch them out"

User avatar
scimjim
RSSOC Member
Posts: 34815
Joined: Sun Oct 01, 2006 10:08 pm
Location: Gloucester
Has thanked: 112 times
Been thanked: 755 times

Re: SE 5 hose sizes

Post by scimjim » Fri Jul 19, 2013 8:30 am

old thread (maybe it should be a sticky?) but can someone confirm the heater pipes (ID & length) for an SE5 please? I think they're 13 mm ID but does one of them increase in size (16mm?) at the pump?


Jim King

Current: SE5 (8Ball), TI SS1 (snotty), 1600 SS1 (G97), 1600 SS1 (C686CCR), 2.5TD SE5a (diesel 5a), 6 x random other SS1s.
Previous: SE5, 3 x SE5a, 2 x SE6a, 3 x SE6b, GTC, 2.9i GTC, 3 x 1600 SS1, 1300 SS1, Mk1 Ti Sabre, Mk1.5 CVH Sabre
Chief mechanic for: 1400 K series SS1 (Megan3), 1400 CVH EFi SS1 (Grawpy), Sabre/MX5 auto (The Flying Broomstick),
1300 SS1 (Number One) & Sarah's coupe.
CURE THE FAULT - NOT THE SYMPTOMS

User avatar
Oaksey
RSSOC Member
Posts: 5434
Joined: Fri Mar 23, 2012 10:45 pm
Location: Cheshire
Has thanked: 38 times
Been thanked: 101 times
Contact:

Re: SE 5 hose sizes

Post by Oaksey » Fri Jul 19, 2013 8:32 am

the pump is definitely larger. I just about managed to get a one size hose on.
